Small Precision ABA Co-Extrusion Casting Experimental Line - Islamabad

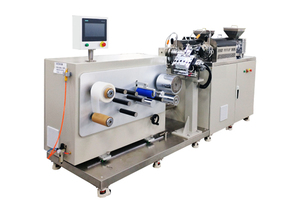

The small precision ABA co-extrusion casting experimental line integrates 2 precision single-screw extruders, 1 set of three-layer co-extrusion casting die head, and 1 set of precision casting auxiliary machine into one experimental equipment, which can realize all functions of multi-layer extrusion, casting, pulling, trimming, winding, and trimming of a casting line. It is easy to use and operate, which can greatly improve the experimental efficiency and shorten the product development cycle. It is an ideal experimental equipment for co-extrusion casting of polymer materials.
The screw is driven by a servo motor, with stepless and precise speed regulation, stable plasticization and good consistency
Digitally designed co-extrusion die head, smooth flow channel without dead corners and material stagnation, and uniform material discharge
Each power roller is independently driven by a servo motor, with precise speed control and good synchronization performance
The height of the cast roller can be raised and lowered to meet the process requirements of cast molding of materials with different melt strengths
Hard chrome-plated mirror roller, with high surface finish and no rust
Based on the control system and touch screen operation interface of PLC, the equipment runs stably and the human-computer interaction is friendly
Real-time measurement and graphic display of important experimental data, convenient observation
Humanized structural design, more convenient operation
Optional online defect visual detection system
Optional constant tension and follow-up roller winding device to improve the film winding quality
Optional air knife or electrostatic adsorber to improve the adsorption effect between the melt and the roller surface
Application range
Co-extrusion cast molding experiment of polymer materials
Co-extrusion cast production process research and parameter optimization
New material co-extrusion cast performance test
